Soil Moisture Sensor
About the product
A Soil Moisture Sensor measures the amount of water content in soil. Soil Moisture Sensors are critical in ensuring that plants receive the optimal amount of water, as over or under watering can harm plant growth and development. Soil Moisture Sensors work by measuring the electrical conductivity or resistance of soil, which changes depending on the amount of moisture present. The Sensor data can be used to trigger automated irrigation systems or to guide manual watering decisions. Overall, Soil Moisture Sensors are an essential tool for horticulturists to maintain healthy plant growth and maximize crop yield.
Specification
● Temperature range: 15 - 30°C (59-86F),
● Moisture range: 0-100%,
● Accuracy: ±10%,
● Cable length: 2m (6.5ft).
Installation
Before and during the connection sensor must be putted into the water.
Connect sensors first, then power the module.

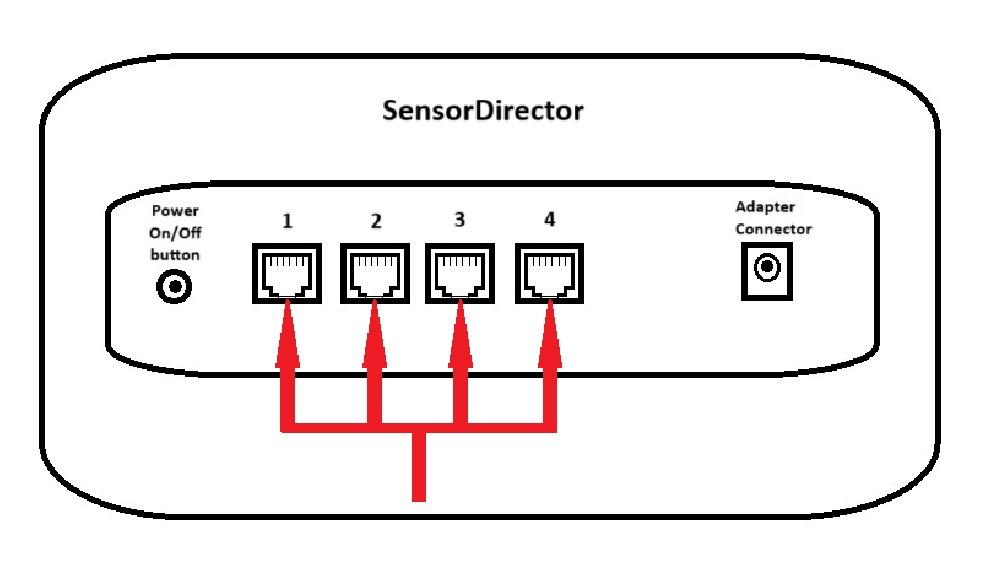

Insert the sensor adapter into the one of square RJ12 slots on the back module panel.
Calibration
Valid Calibration Period Days: 90.
Calibration Time in Seconds: 120.
To start Soil Moisture calibration, please, follow these steps:
-
Before connecting to module sensor must be into the water!
-

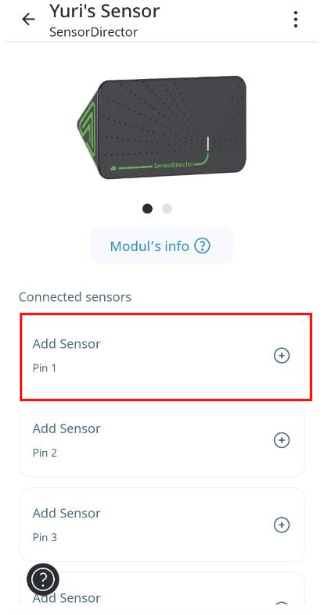

Tap the SensorDirector button and then tap Add Sensor. The following screen appears:

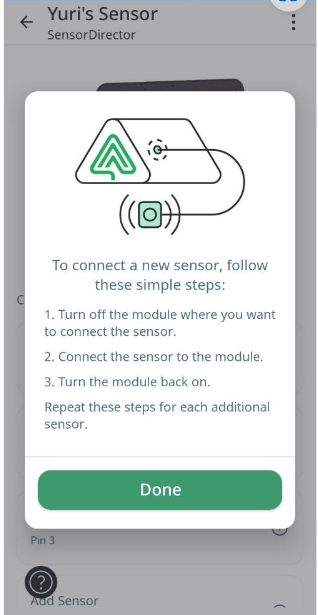

- Read instructions and then tap the Done button. The following screen appears:
- Tap Start Calibration button. The following screen appears:

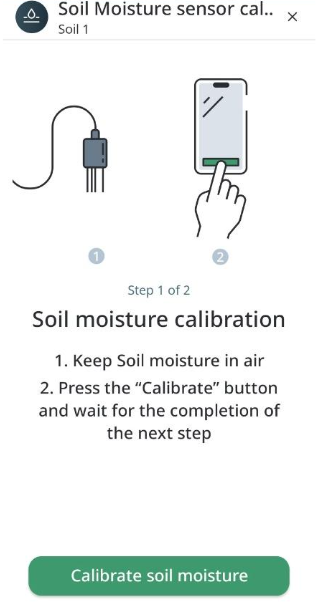

- Keep Soil Moisture in air and then tap the Calibrate button. The following screen appears:

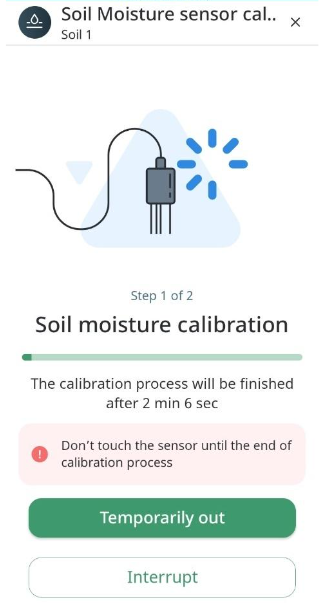

- Wait a few minutes until the first calibration step will be done. The following screen appears:

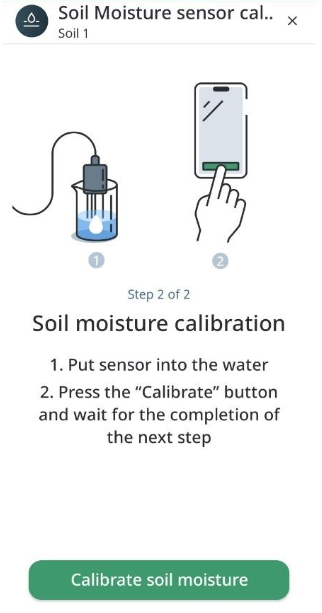

- Put Sensor into water and then tap Calibrate button. The following screen appears:

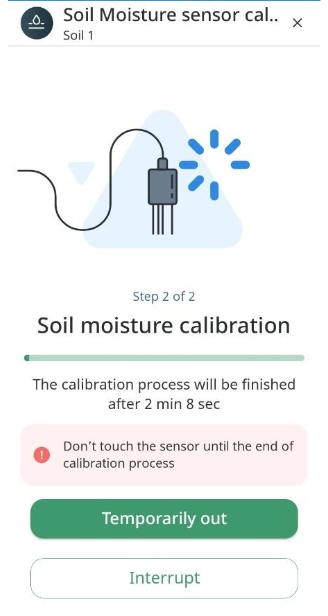

- Wait a few minutes until the second calibration step will be done. The following screen appears:

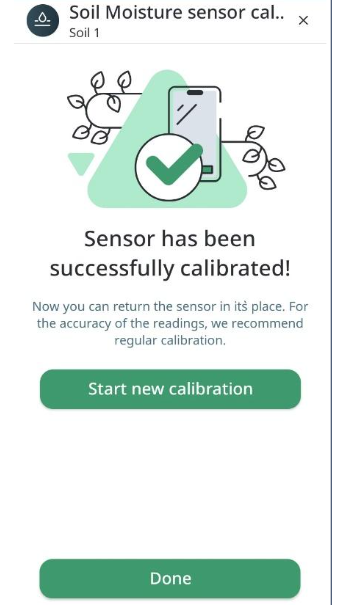

- Tap Done to end Calibration. The following screen appears:
